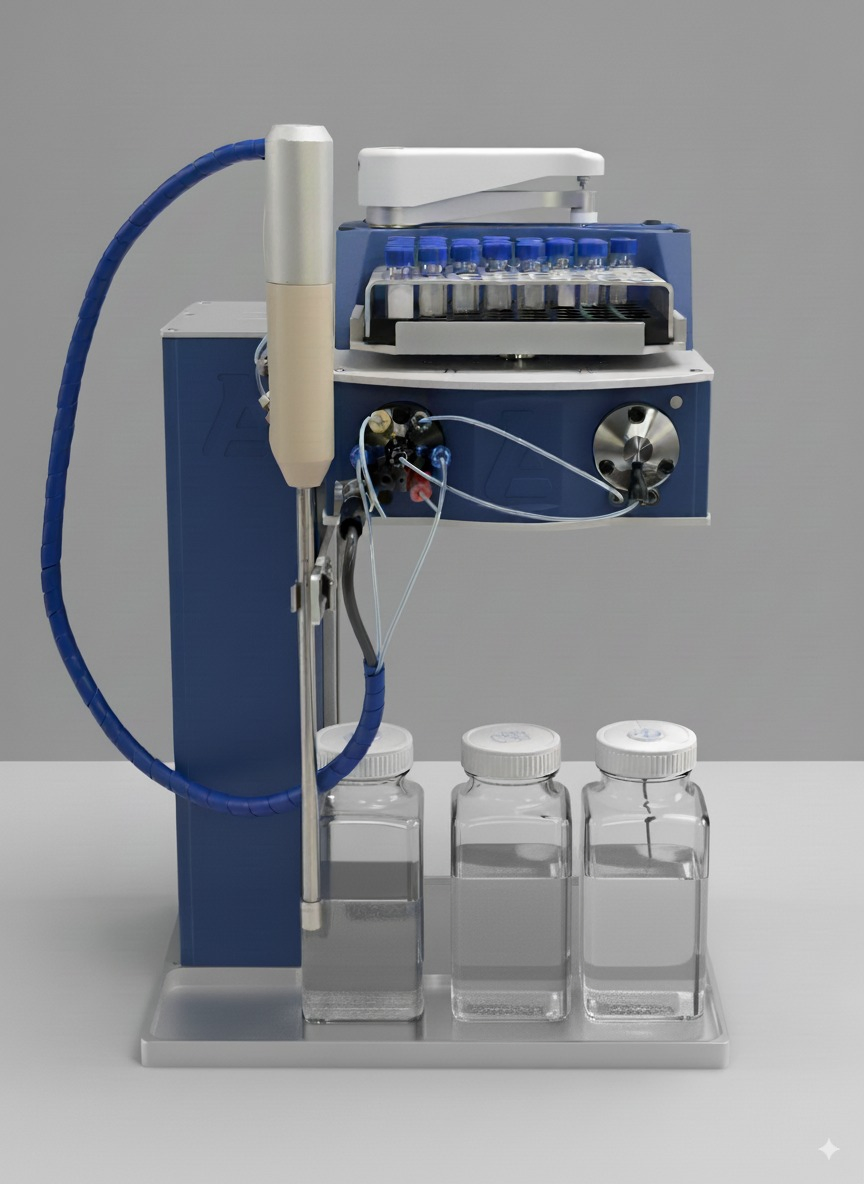

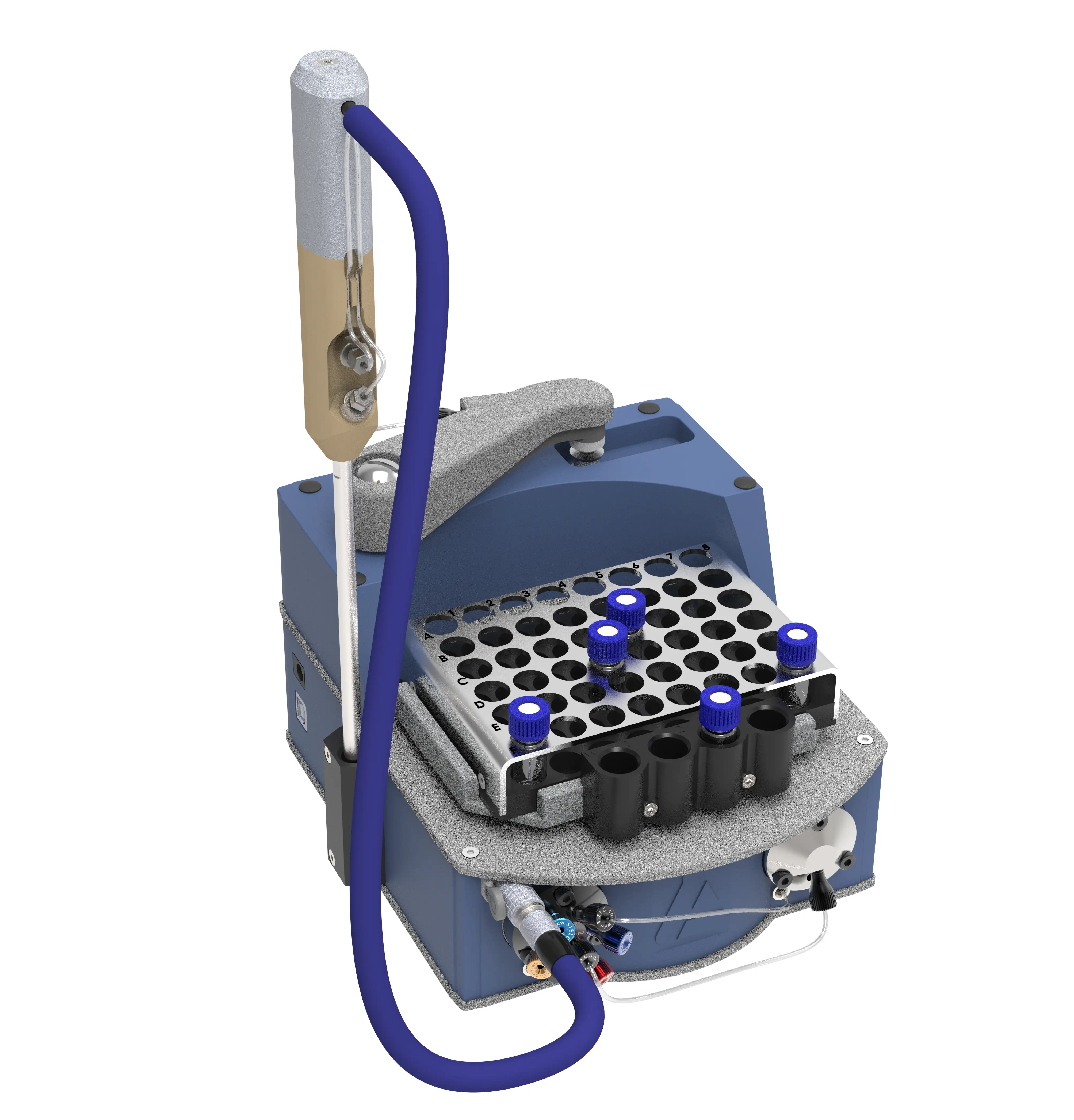

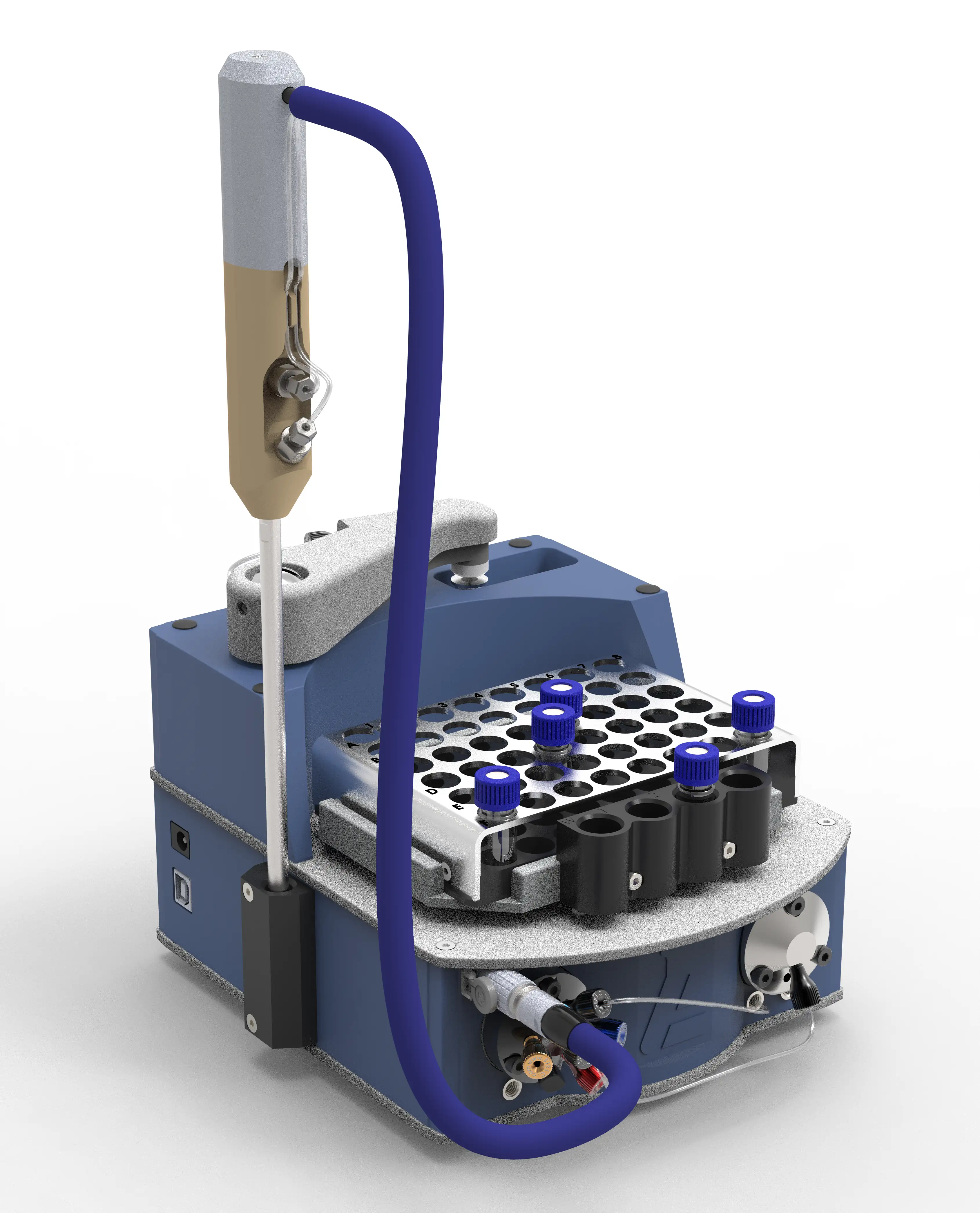

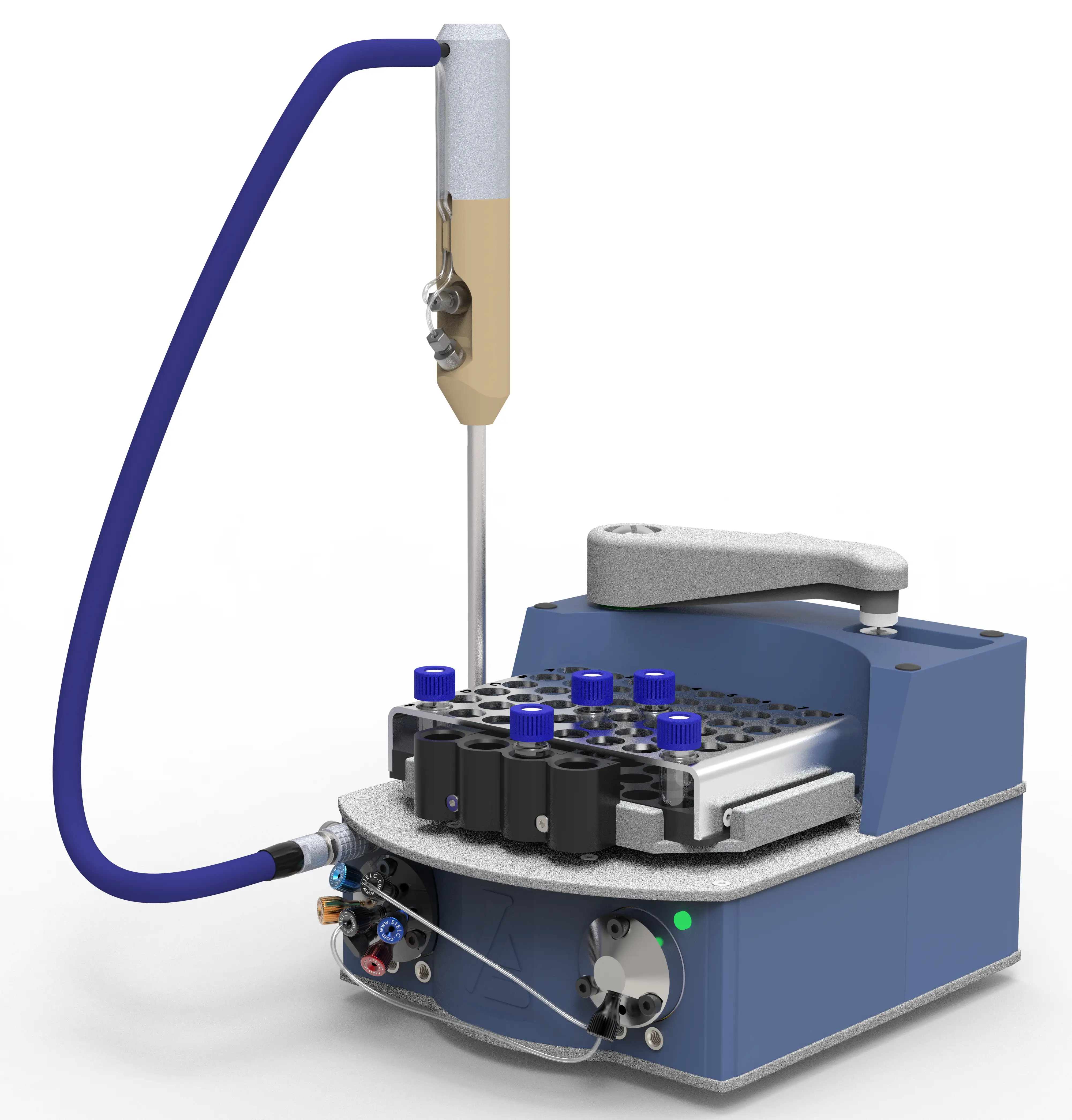

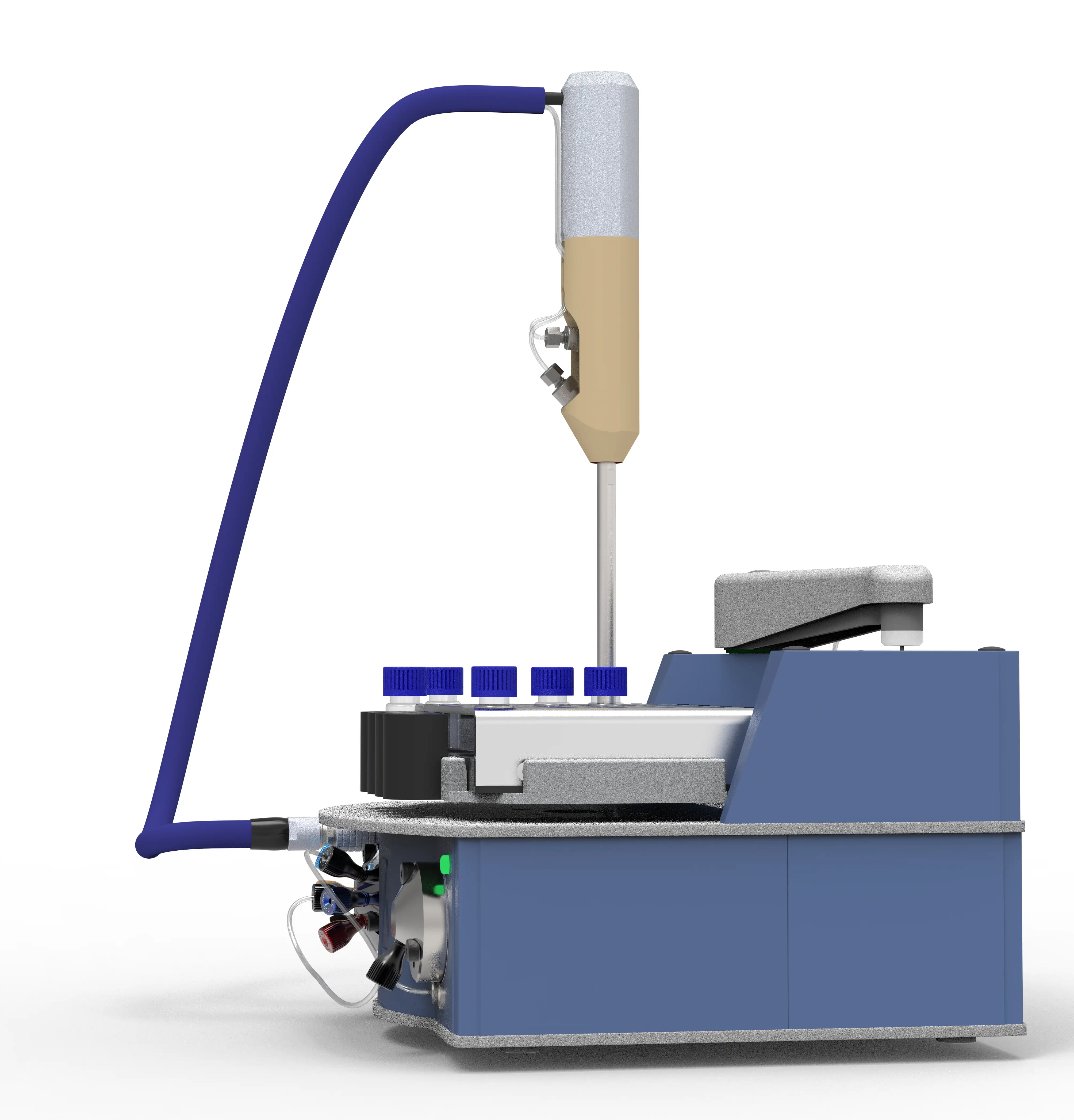

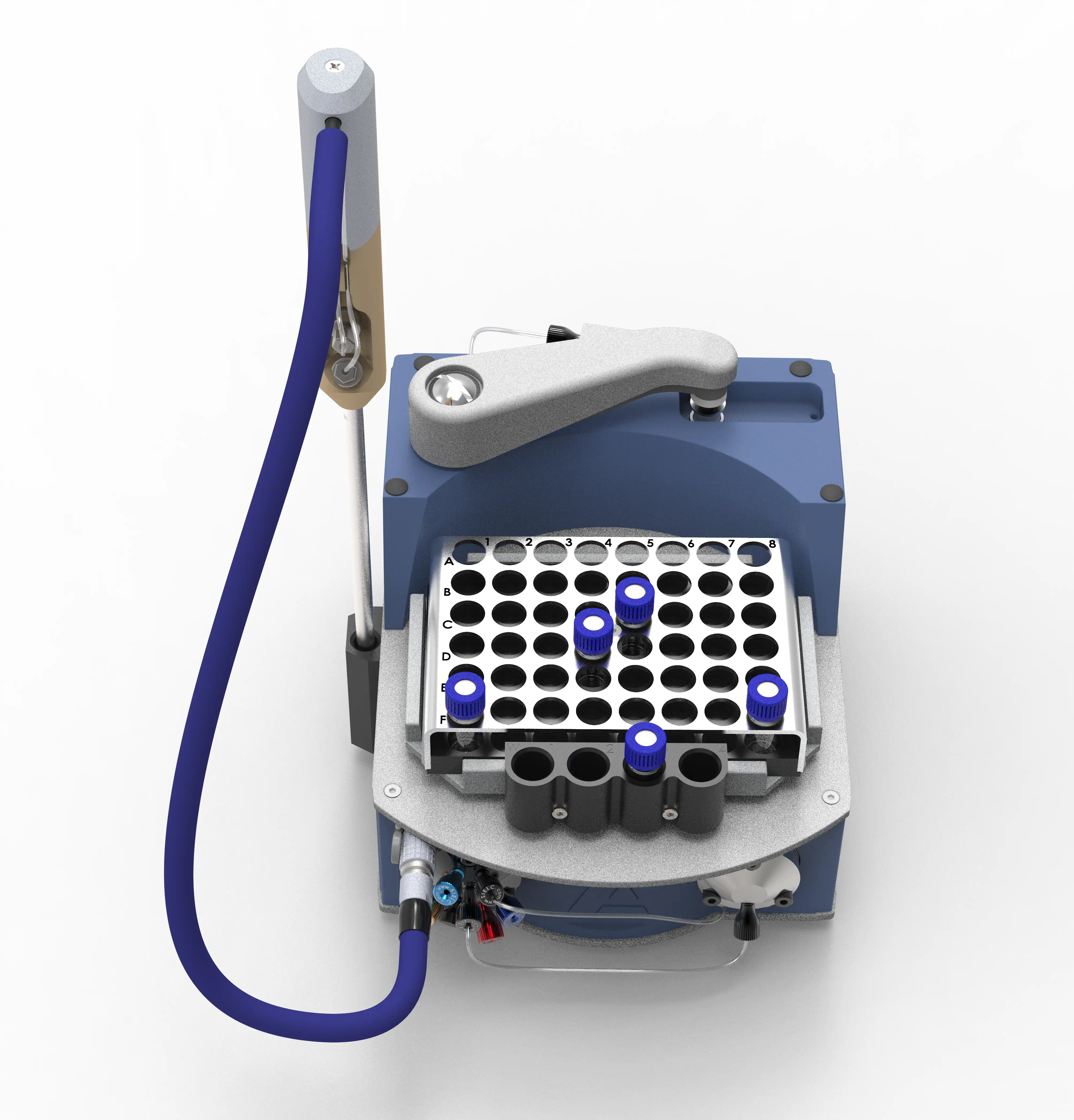

Samplify™ Automated Sampling System
The Samplify™ Automated Sampling System automatically collects liquid samples from open or closed systems at specified intervals. It combines a sampling probe with the Alltesta™ Mini Liquid Handling Station (LHS) for sample collection, dilution, quenching, and mixing.
PC-based software supports flexible sampling sequences, while an open serial protocol enables integration with custom software and equipment. Its compact design allows placement near reactors to shorten transfer lines and reduce sample dispersion.
System Components:
- Samplify™ Probe – an electromechanical device for automated liquid sampling from closed or open systems. Available in 150, 300, and 600 mm lengths, it supports sampling environments at pressures up to 120 psi and temperatures up to 200 °C, subject to material compatibility.
- Alltesta™ Mini Liquid Handling Station (LHS) – automatically extracts and distributes samples to designated locations.
Together, the Samplify™ Probe and Alltesta™ Mini LHS provide cost-effective and reliable automation for analytical and liquid-handling applications. The system enables precise sample collection, controlled dilution, and automatic quenching to preserve sample integrity. A shaking function ensures thorough mixing, while PC-based software allows quick and flexible experiment setup.
The compact design enables placement near reactors with short connection lines to minimize dispersion. For temperature-sensitive samples, the system can operate in a controlled environment, with an optional cooler to maintain low temperatures after collection.
Samplify™ Automated Sampling System Special Features:
- Features from Newcrom Inc.:
- The Samplify™ Automated Sampling System offers flexible control options to suit any workflow. Whether you're integrating it with your own software using our open, fully documented serial command protocol, exploring its full functionality through our intuitive demo software, or managing it remotely via our powerful cloud platform.
- Adapt the Samplify™ Automated Sampling System to your specific requirements. The design is flexible in two ways - a variety of hardware options, including tray designs, needle length, vial type and volume; The software provides for the developer a full operational control of every module of the Liquid Handling Station. Full software integration support is provided for qualified customers
- Standard vials: Universal collection vials ensure compatibility with HPLC and GC.
- Variable sample volume: A unique design allows users to select the sample volume to be collected.
- Variable dilution ratio: Desired dilution ratios can be easily achieved with a solvent.
- Automatic mixing: Automated vial shaking for fast mixing of samples with reagents
- Probe Length Options: 150, 300, or 600 mm.
- Flexible Sample Capacity: 48- or 54-vial trays and 96-well plates.
- OEM and API: Interfacing available through API or OEM software
- Minimal Dispersion: The compact device size enables close positioning to reactors, reducing connection line length and preventing sample loss.
Samplify™ Device Specifications:
| Samplify™ Automated Sampling Standard configuration |
Samplify™ Automated Sampling Customizable configuration |
|
|---|---|---|
| Dimensions (WHL) | 160 x 145 x 195 mm / 6.3 x 5.71 x 7.68 in | depends on configuration |
| Weight | 2.3 kg / 5 lb | depends on configuration |
| Syringe Capacity | 4000 µL low-pressure stainless | 4000 µL low-pressure stainless 4000 µL low-pressure metal free |
| Draw/refill rates | Up to 48,000 µL/min | depends on configuration |
| Pressure | Up to 250 psi | Up to 250 psi |
| Plate | 48 vials | 48 vials 54 vials 96-well plate |
| Needle | Vented (36mm) | Short (36mm) Vented (36mm) Capillary metal free (36mm) |
| Volume Accuracy | 1 µL | depends on configuration |
| Communication | The primary method of communication with the device is via a UART interface using an FTDI driver, as the device incorporates an FTDI chip | The primary method of communication with the device is via a UART interface using an FTDI driver, as the device incorporates an FTDI chip |
| Materials | in contact with liquid SS316, PTFE, PEEK | in contact with liquid SS316, PTFE, PEEK |
| Inlet/Outlet | Thread 10-32 UNF compression type | Thread 10-32 UNF compression type |
Samplify™ Probe Performance Specifications:
| Dimensions | Base 1 x 1 inch, Tube DIA ¼ inch. Immersion length up to 6 inch |
| Probe Length Options | 150 mm, 300 mm, or 600 mm |
| Connection | Optionable |
| Materials in contact with liquid | in contact with liquid SS316, PTFE, PEEK |
| Variable sample volume | From 5 to 500 µL |
| Max. working environment pressure | 120 psi (8 bar) |
| Max. working temperature | 200 °C |
Chemical and Pharmaceutical Research
Continuous sampling and monitoring of chemical reactions or fermentation processes.
Biotechnology & Bioprocessing
Automated sampling for cell culture and microbial fermentation studies.
Environmental Analysis
Sampling of water and soil extracts for contaminant monitoring.
Food & Beverage Industry
Quality control and ingredient verification.
Software & Connectivity
The Samplify™ Automated Sampling System can be controlled through multiple interfaces:
- Direct Serial Commands: Via user software (Alltesta™ protocol available upon request at support@sielc.com).
- PC Software Interface: Enables full control of sampling operations and parameters.
- Serial Communication Drivers: are available here.
