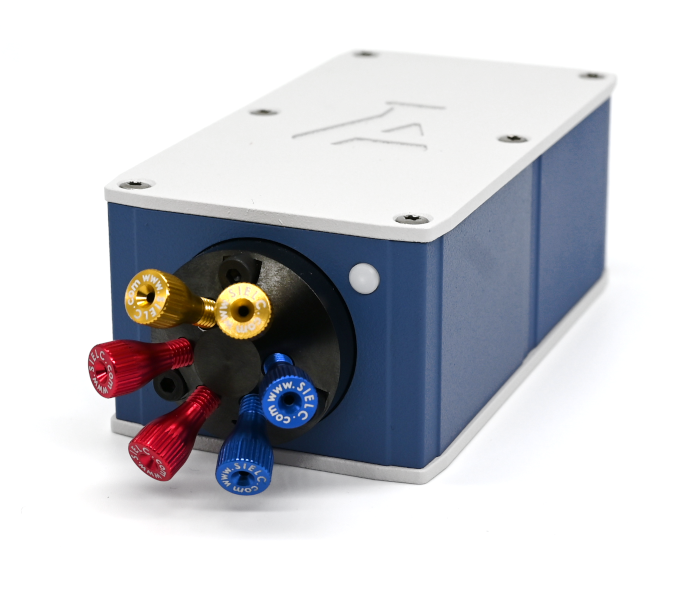

Alltesta™ High-Pressure Switching Valve
Contact us for pricing
The Alltesta™ High-Pressure Switching Valve is a compact solution for precise fluid routing in analytical and laboratory systems. Multiple valve configurations provide flexible flow switching for applications such as column switching, solvent selection, sample injection, and automated fluid handling.
The standard 6×2 configuration operates at pressures up to 5000 psi (345 bar) and provides fast 200 ms switching for a 60° rotation. Multiple configurations with up to 10 ports are available to meet different system requirements.
Special Features
- High-Pressure Operation: Up to 5000 psi (345 bar) in the standard 6×2 configuration.
- Multiple Configurations: Available in 6×2, 7×6, and 10×9 configurations, with additional rotor options.
- Fast Switching: 200 ms switching time for a 60° rotation in the standard configuration.
- Chemically Resistant Materials: Wetted materials include SS316, PTFE, PEEK, and Vespel®.
- Flexible Control: Supports serial commands, dedicated software, cloud control as part of the Alltesta™ Analyzer, and manual switching.
- Open Serial Communication: UART interface allows integration with custom software and automated systems.
Performance Specifications
| Standard Configuration | Customizable Configuration | |
|---|---|---|
| Dimensions (WHL) | 63 × 46 × 128 mm / 2.48 × 1.81 × 5.04 in | 63 × 46 × 128 mm / 2.48 × 1.81 × 5.04 in |
| Weight | 0.45 kg / 0.95 lb | depends on configuration |
| Pressure | 5000 psi (345 bar) | depends on configuration |
| Power Requirements | USB type B | USB type B |
| Power | 24 V | 24 V |
| Valve Options | 6×2 | 6×2; 7×6; 9×10; 7×6*; 6×2* |
| Switching Speed for 60° | 200 ms | depends on configuration |
| Inlet/Outlet | 10-32 UNF compression-type thread | 10-32 UNF compression-type thread |
| Materials in Contact with Liquid | SS316, PTFE, PEEK, Vespel® | SS316, PTFE, PEEK, Vespel® |
| Communication | UART interface (primary communication method) | UART interface (primary communication method) |
*Other rotor
Applications
- Column switching
- Solvent selection
- Sample injection
- Sample cleaning
- Automated fluid routing
- Chromatography and analytical systems
Software & Connectivity
The valve can be controlled using direct serial commands, dedicated Windows software, remotely through the Alltesta™ Analyzer cloud software, or manually using the button on the device.
Frequently Asked Questions
The valve is available in 6×2, 7×6, and 10×9 configurations, with additional rotor options available for specific applications.
The standard 6×2 configuration supports pressures up to 5000 psi (345 bar). Pressure capability for custom configurations depends on the selected configuration.
Yes. The UART communication interface and serial command protocol allow the valve to be integrated into custom software, laboratory automation, and analytical instrumentation.
